Intelect NMES Unit – Standard

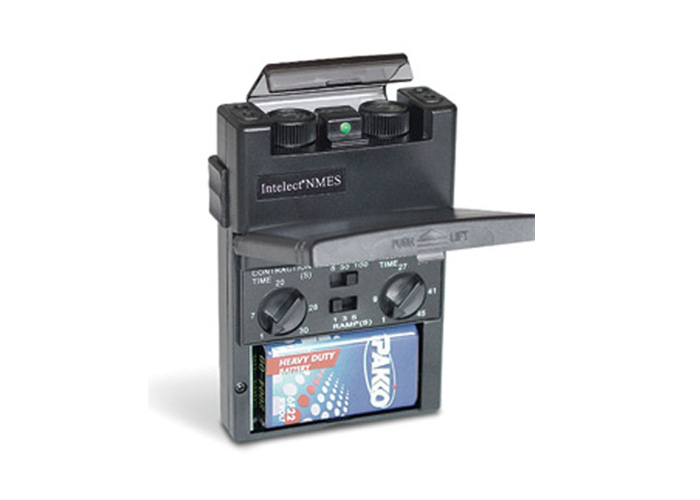

Intelect® NMES Standard

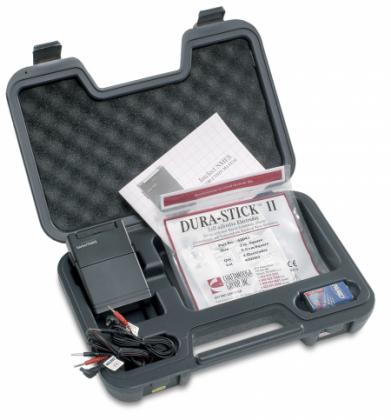

Intelect® Portable Electrotherapy Neuromuscular Electrical Stimulation. For the prevention of disuse atrophy as well as muscle re-education, increasing range of motion and increasing circulation. Includes leadwires, 9-volt battery, Dura-Stick® Self-Adhesive Electrodes and a convenient carrying case.

Features & Benefits

  • Dual Independent Channels
  • Adjustable Pulse Amplitude, Pulse Frequency and Contraction/Relaxation Time parameters

Specifications

Ordering Information

Part Number Description
DJO77715 Intelect® NMES Standard Unit

Accessories

Part Number Description Quantity
77609 Rechargeable NiCd 9-volt Battery 1
77610 Battery Recharger 1
77593 Leadwire, TENS 360° Pivot, Unshielded Connector 2 PK
77594 Leadwire, TENS 360° Pivot, Shielded Connector 2 PK
77595 Leadwire, TENS Non-Pivot, Shielded Connector 2 PK

Technical Specifications

Specification Description
Channel: Dual, isolated
Waveform: Asymmetric biphasic square pulse
Pulse Amplitude: 0-80 mA each channel adjustable (500 ohm load)
Pulse Width: Fixed 250æ sec.
Pulse Frequency: 5, 30, 100 Hz
Dimensions: 1″ x 2.4″ x 3.6″ (26 x 62 x 91 mm)
Weight: 4.4 oz (126 g)
Safety Tests: EN 60601-1, EN 60601-2, EN 60601-2-10
